Decimator Design Announces a 4K Cross converter: 12G-CROSS
Decimator Design has launched a new product to extend their converter range. Building on their existing cross converters, the new 12G-CROSS offers 4K support up to 4096x2160 at 60p, expanding the versatility of the range.
12G-CROSS: Decimator Design’s new 12G-CROSS allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine. The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.

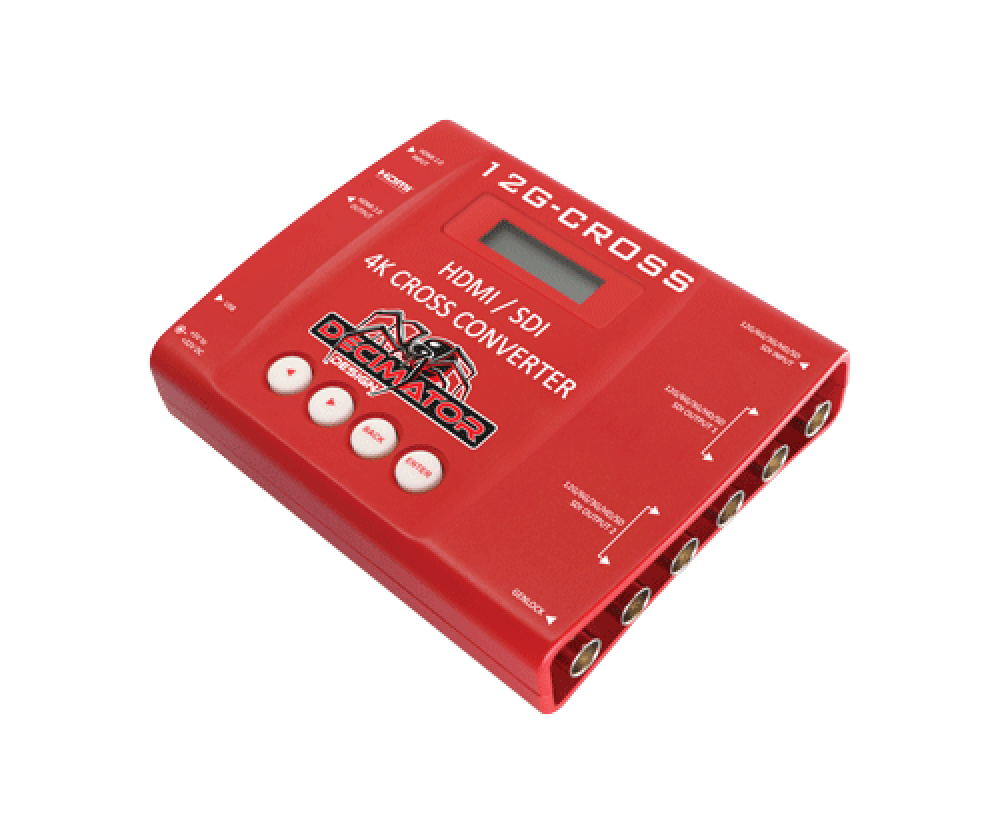

The 12G-CROSS is a small (4.2” x 5.1” x 1.2”), low power, portable converter encased in a solid heavy duty aluminum case and does not contain a noisy fan, allowing it to be used in almost any environment.
The 12G-CROSS features the following four modes:
- HDMI to SDI while simultaneously converting SDI to HDMI
- HDMI to HDMI while simultaneously converting SDI to SDI
- HDMI to SDI and HDMI
- SDI to SDI and HDMI
Decimator Design’s new 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:
- (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI levels A or B
- 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
That is an amazing 3249 possible format conversions!
The 12G-CROSS also supports 3G-SDI level A and B, allowing for conversion between both.
The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.
$495.00 plus local taxes and shipping.
For more information on features please visit www.decimator.com. E&OE.
