Press Release - 3rd April 2020
Decimator Design has now started shipping the 12G-CROSS, including new unannounced features.
NEW: Support added for conversion of 294 VESA formats via the HDMI input.

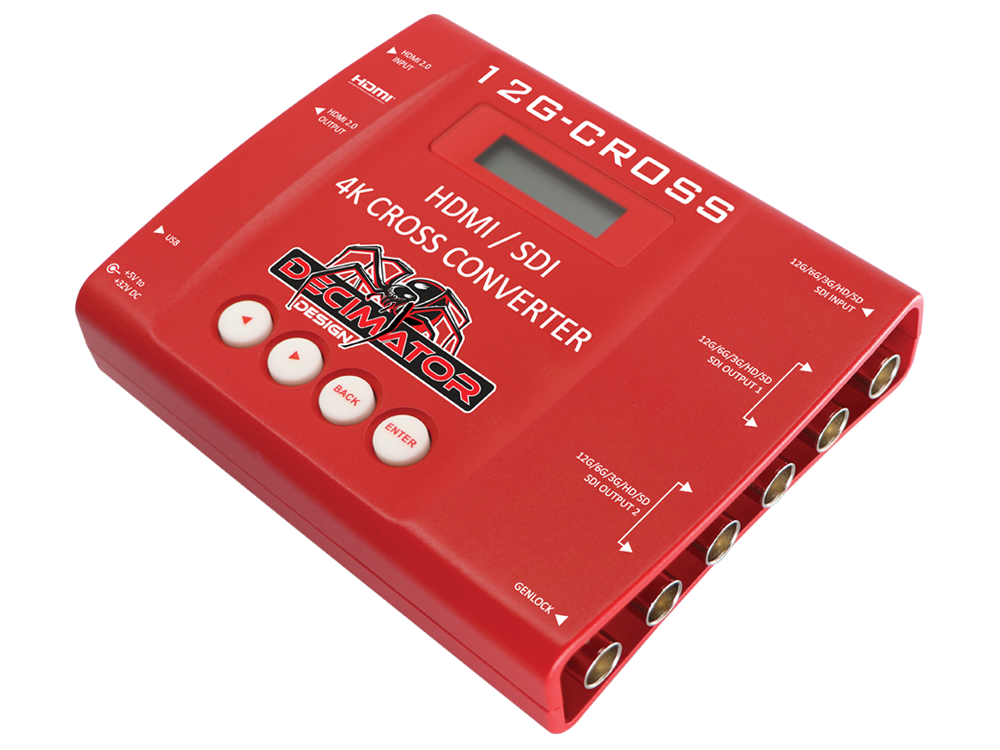

Decimator Design’s 12G-CROSS allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine. The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
The 12G-CROSS is a small (4.2” x 5.1” x 1.2”), low power, portable converter encased in a solid heavy duty aluminum case and does not contain a noisy fan, allowing it to be used in almost any environment.
The 12G-CROSS features the following four modes:
- HDMI to SDI while simultaneously converting SDI to HDMI
- HDMI to HDMI while simultaneously converting SDI to SDI
- HDMI to SDI and HDMI
- SDI to SDI and HDMI
Decimator Design's new 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats. The supported formats are:
- 294 VESA formats in via HDMI input
- (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI levels A or B • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
That is an amazing 20,007 possible format conversions!
