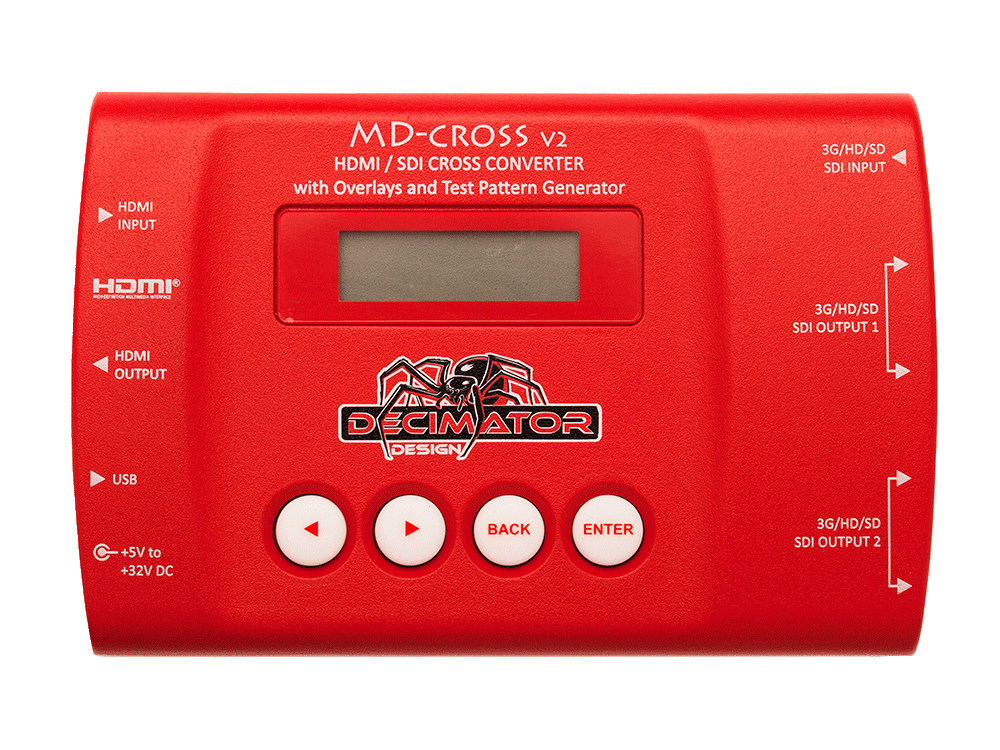

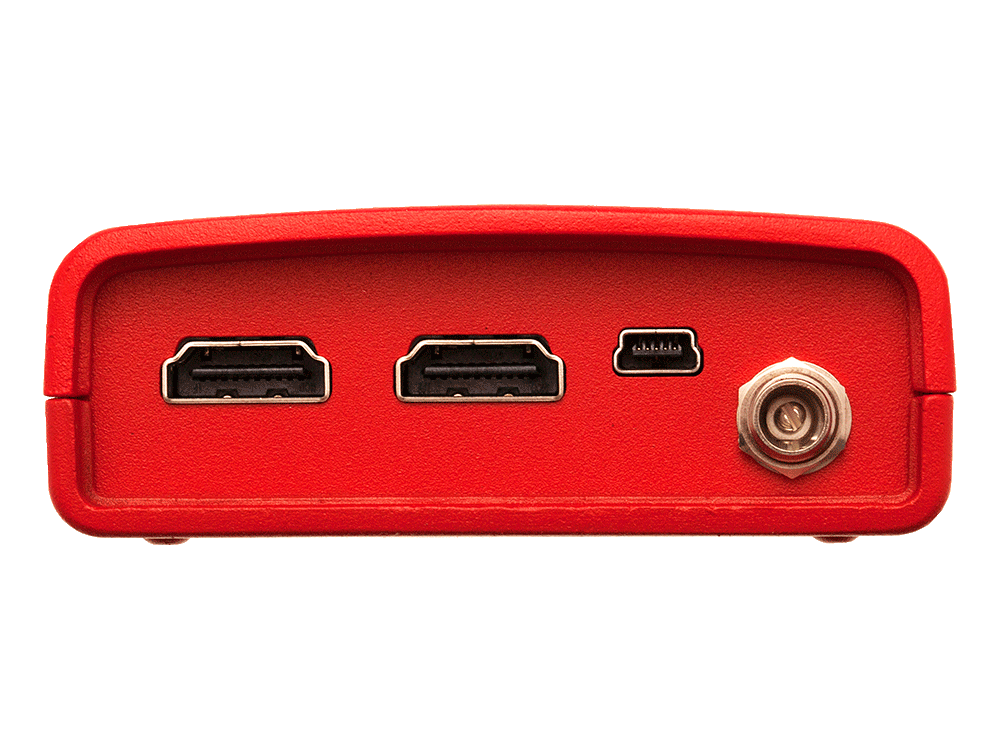

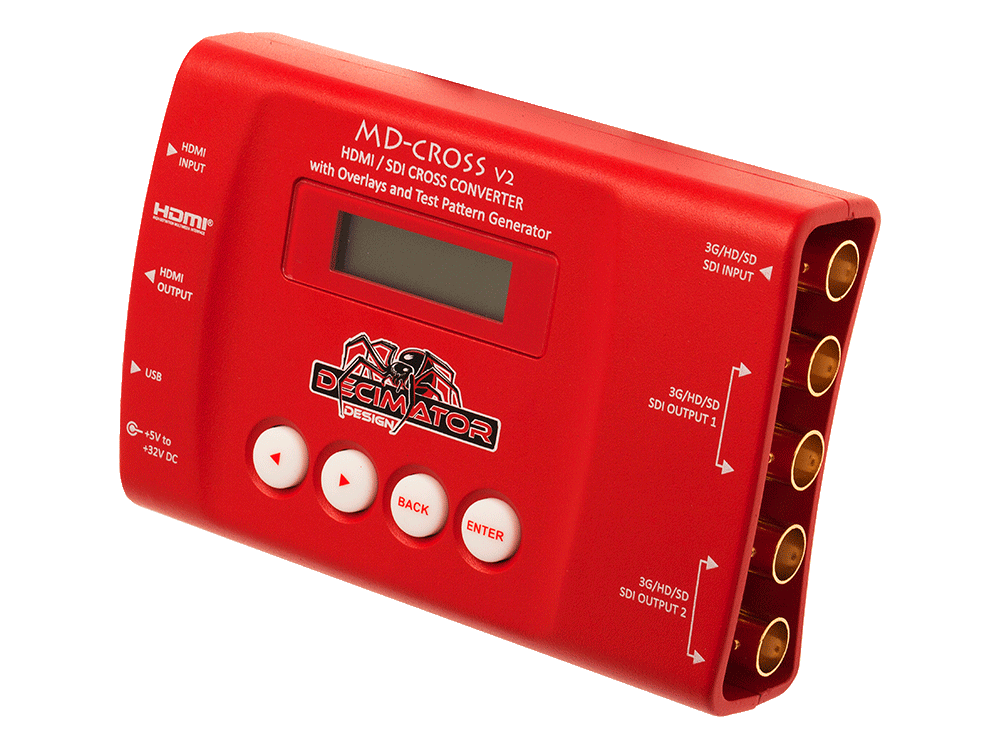

MD-Cross V2

HDMI/SDI Cross Converter for 3G/HD/SD with Scaling, Frame Rate Conversion, Overlays and TPG.

SRP $395

(excl. vat)

The MD-CROSS from Decimator Design is a feature-packed HDMI/SDI down up cross converter including a professional Test Pattern Generator.   The Decimator MD-CROSS can be used to perform a variety of functions:

  • HDMI to SDI while simultaneously converting SDI to HDMI
  • HDMI to HDMI while simultaneously converting SDI to SDI
  • HDMI to SDI and HDMI
  • SDI to SDI and HDMI
  • Scale & Convert Frame Rate on either the SDI or HDMI inputs
  • Convert between level A + level B 3G-SDI New
  • Horizontal and/or vertical image flipping via build in scaler New
  • Full 16-Channel Audio Metering Overlays
  • Adjustable Safe Title & Safe Action Overlays and static Center Cross
  • Text Overlays
  • Test Pattern Generator

The MD-CROSS is controlled either via USB on a Mac/Windows app, or on-unit using the LCD screen and button controls.  The unit comes with a Locking DC Power Supply, HDMI Cable & Mounting Bracket.  Warranty for all Decimator Design products is 3 years.

For full product specs please visit the Decimator Design website.
